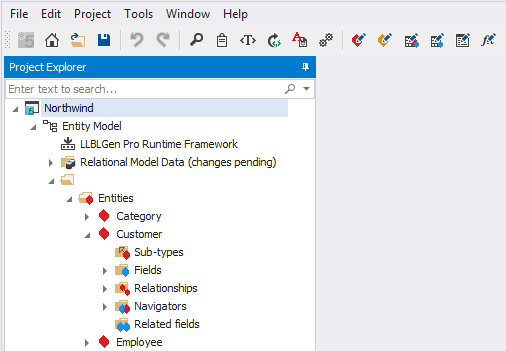

The Project Explorer docked to the left side of the Designer

The project explorer is the central viewer of the elements in your LLBLGen Pro project and the entrance point to for performing actions on these elements. You can compare it with the 'Solution Explorer' in visual studio.

LLBLGen Pro has a project explorer which is multi-selection aware. Every node in the Project Explorer, if applicable, has a context menu which offers functionality on that node or a group of selected nodes of that same type (e.g. a selected set of entity definition nodes).

The Project Explorer isn't the only viewer of project information, the Catalog Explorer is equally important, for viewing and interacting with the Relational Model Data available to you in the project.

The main parts of the project explorer are explained below

The main Project Explorer elements

The following main elements are available in the Project Explorer. As the project is divided into Entity Model and Derived Models, the different nodes are explained per part.

Search
At the top of the Project Explorer a search box is present which allows you to search on every node in the tree by typing a part of the name of the node. All nodes which name contains the typed text are shown, the rest of the nodes are hidden. Removing the typed text by clicking the X button in the search text box will restore the tree as it was before the search.
Project Node
The project node is the node which represents the loaded project. You can use this node to access project oriented functionality.
Entity Model Node
The root node for all Entity Model related elements.
Derived Models
The root node for all Derived Model elements.

Entity Model

The following nodes are available below the Entity Model node.

Target Framework
This node represents the target framework chosen for the entity model
Relational Model Data and Relational Model Data Storage nodes
Relational Model data, be it relational model data retrieved from a relational database (database first) or generated by the designer from entity definitions (model first), is stored in Relational Model Data Storage containers, which are visible below the Relational Model Data node. These Relational Model Data Storage containers are the root nodes of the nodes visualized in the Catalog Explorer.
Group Nodes
The initial group is the unnamed group. You're free to rename it or create new groups by moving elements like entity definitions to a named group. Groups are either a visual grouping mechanism or a way to group elements for different output projects. This is controlled by settings in the project.
Element Definitions

These definitions form the main building blocks for the model available though the Project Explorer. Each of these elements can be placed into a named Group or be placed in the unnamed group. They can be one of the following:

  • Entity Definitions
  • Value Type Definitions
  • Typed List Definitions
  • Typed View Definitions
  • Stored Procedure Call Definitions
  • Table Valued Function Call Definitions
Model View Definitions
Model View Definitions are placed outside groups and can contain entity definitions of multiple groups.

Derived Models

The following nodes are available below the Derived Models node.

Derived Model Nodes
Per derived model a root node is added, with the name of the model

Derived Model

The following nodes are available below a Derived model node

Target Framework
This node represents the target framework chosen for the derived model
Derived Element Nodes
Per derived element a node is present with the name of the derived element as well as the name of the element from the Entity Model it derives from. The derived element nodes are specified with their full hierarchical shape.
